The Tabs&Switches Function Instruction
Installion instructions
|
|
|
|
|
|---|---|---|---|
1. Draw outline on the paper boardDraw the cat door frame on a paper board and cut it down. Note: You had better prepare these necessary tools first, pencil, ruller, electric saw, drill, screwdriver, double-side tape. |
2. Draw outline on the doorUse a pencil draw around the edge of the cut paper on the door you want to be fixed to. Note: Generally, average installation height is around 10-15 cm from the floor. |
3. Drill 4 corners for holesDrill 4 corners for thorough holes first with an electric drill. |
4. Cut out a tunnel holeCut out the tunnel hole with an electric saw starting at holes drilled. |
|
|
|
|
|
|---|---|---|---|
5. Put the cat door in the doorAfter the tunnel hole is cut out, it’s better to wrap around it with a layer of wood skin. And if your hole is cutting a little big, it’s quite neccessary. |
6. Cut down tunnel depth if necessaryIf the cat door is too thick for your door, use a scissors or cutting machine to cut down some part of tunnel along the line A or B. The cutting scale is about 2-4CM. |
7. Mount to the doorMount the cat door with double-side tape to the door. 8 screws have been provided for your use, tighten them with a screwdriver on both sides. Note: 8 screws for 4 holes on both sides, screw them all in 2 sides as illustration shown above, please. These 8 screws are designed to work together, they are not short. |
8. DonePlace screw caps over the screw holes, press them on. The installation is completely done. |
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|
| View Product | View Product | View Product | View Product | View Product | View Product | |
| Upgraded Version | ✓ | ✓ | ✓ | |||
| Outer Size | 7.56″ × 8.5” × 2.17” | 9” × 10.6” × 2.17” | 10” × 11.6” × 2.17” | 9.8” × 11” × 2.15” | 9.8″ x 11″ x 0.94″ | 9.4″ x 11.4″ x 0.4″ |
| Inner Size | 6.3” × 6.2‘’ × 2.17” | 7.1” × 7.7” × 2.17” | 7.7” × 8.9” × 2.17” | 7.9″ x 8.7″ × 2.15” | 7.9” × 8.7‘’ × 0.94‘’ | 7.5″ x 9.4″ x 0.4″ |
Make sure this fits by entering your model number.
☞Size — The medium cat door, inner size 2.17″(D) x 6.18″(W) x 6.30″(H), it’s suitable for cat lighter than 15.43 lb and waist circumference shorter than 15.75″. And its outer size is 2.17″(D) x 7.56″(W) x 7.87″(H). Note: The medium and small are different in depth and back structure, the small size is suitable for glass door
☞SAFE&THOUGHTFUL — The transparent cat flap let cat see through the door. Exterior rain seal is for waterproof. Brush strip eliminates noise from the door closing. 4-way door control meets cat’s daily need. The magnet between the 2 switches is for aligning the flap after swings. Inner frame edge get polished, so as not to hurt cat

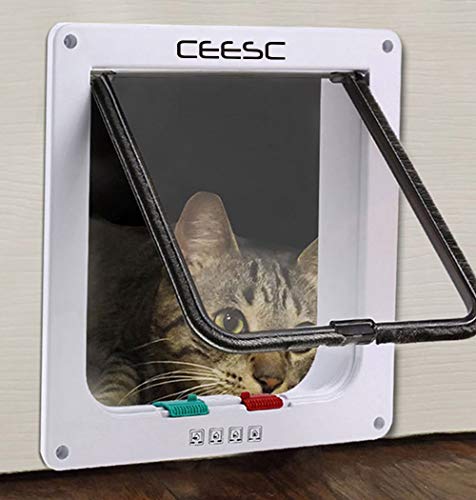

☞4-WAY SWITCH MODE — The cat flap door could be adjusted by the Red and Green switches with tabs to 4 modes: out, in, both in and out, and fully locked. The tabs are the key factor for the 4-way switch
☞EASY TO INSTALL — 8 screws and its caps included in the set makes you easily install in windows, doors, cupboards, panels and walls, etc. Screw in the 8 screws for 4 holes from both sides, if the cat door is too thick for the door you want to be fixed to, you could cut the tunnel depth using a scissors, saw or cutting machine
☞EXCELLENT QUALITY — Made of ABS material, weather-resistant, the surface is smooth and durable. Please peel off the protective film of the cat flap panel after you install the cat door
